Understanding the Basics
In any standard electrical system, you’ll typically encounter three main types of wires:
- Live (or Hot) Wire: Carries electricity from the power source to the device. It’s the most dangerous and should be handled with caution.
- Neutral Wire: Completes the electrical circuit by carrying current back to the power source.
- Earth (or Ground) Wire: Provides a safe path for electricity in case of a fault, preventing electric shock.
In most residential systems, alternating current (AC) is used. Therefore, both live and neutral wires are active parts of the circuit, but only the live wire carries high voltage relative to the ground.
Colour Codes for Wires
The easiest way to identify wires is by their colour. However, colour conventions can vary by country and sometimes even by building age. Here are the most common standards:
UK and EU Wiring Colours (post-2004)
- Live: Brown
- Neutral: Blue
- Earth: Green/Yellow
US Wiring Colours
- Live (Hot): Black or Red
- Neutral: White or Gray
- Ground: Green or Bare Copper
Note: Older systems might use different colours (e.g., red or yellow for live wires in older UK homes), so always be cautious.
How to Identify Wires Without Relying on Colour Alone
Sometimes, wire colour can be faded, mislabelled, or completely absent. Here are methods to accurately identify neutral and live wires:
1. Use a Non-Contact Voltage Tester
This is the safest way to identify a live wire. Here’s how:
- Step 1: Turn off the circuit at the breaker box.
- Step 2: Expose the wires you want to test (e.g., inside a switch box or outlet).
- Step 3: Turn the circuit back on carefully.

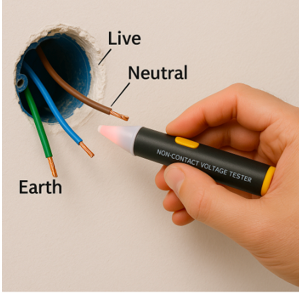

- Step 4: Hold the non-contact tester near each wire. The tester will light up or beep when it senses voltage in the live wire.
- Step 5: Mark the live wire for reference. The wire that doesn’t trigger the tester (and isn’t ground) is likely the neutral.
This tool is safe because it doesn’t require direct contact with bare wire ends.
2. Use a Multimeter (for Advanced Users)
A multimeter can give more detailed readings. Here’s how:
- Step 1: Set your multimeter to AC voltage mode.
- Step 2: Place one probe on a known ground (like a metal outlet box or ground wire).
- Step 3: Touch the other probe to each wire:
- If the reading is ~120V or 230V (depending on your country), it’s the live wire.
- If the reading is 0V, it’s the neutral wire.
Be extremely cautious when using a multimeter—there’s direct contact involved, which can be dangerous if you’re inexperienced.
3. Trace from the Circuit Breaker or Fuse Box
If the wire leads directly from a breaker, it’s usually the live wire. Neutral wires are generally bundled together on a separate terminal block. If you’re working inside a breaker panel (which is dangerous and should be done only by professionals), this method can confirm identities visually.
4. Visual Clues from Devices and Fixtures
- Plugs and Sockets: Often marked with “L” (Live), “N” (Neutral), and “E” (Earth).
- Switches: Usually interrupt the live wire only. If a wire is connected to a switch, it’s almost always live.
- Light Fixtures: The terminal marked “L” is for the live wire, and “N” is for neutral.
Safety Tips
- Always turn off the power at the main breaker before working on any wiring.
- Label wires as soon as you identify them to prevent confusion.
- Wear insulated gloves and use insulated tools if you’re unsure.
- Don’t rely solely on colour, especially in older homes or systems with DIY wiring.
- If in doubt, hire a licensed electrician. Electricity is dangerous, and mistakes can be fatal.
Conclusion
Identifying neutral and live wires correctly is a fundamental skill for anyone working with electrical systems. While colour coding provides a helpful guide, the safest and most reliable way to identify wires is by using a non-contact voltage tester or multimeter. Always prioritise safety, double-check your results, and don’t hesitate to consult a professional if you’re uncertain. By carefully identifying each wire, you ensure not only the functionality of your project but also your own safety and that of others.
