Electrical wiring colour codes are essential for ensuring safety, consistency, and clarity in installations. They allow electricians and homeowners to quickly identify the purpose of each conductor, reducing the risk of accidents such as electric shocks or short circuits. In the United Kingdom, the colour code for electrical wiring has undergone changes over time, most notably in 2004, when harmonisation with European standards was introduced. Understanding both the old and new wiring colours is important, particularly when working with older installations.
Pre-2004 Wiring Colours (Old System)
Before harmonisation, the UK had its own distinct colour scheme for fixed wiring in domestic and commercial installations. The main conductor colours were:
- Live (Phase) – Red
The red wire carried current from the supply to appliances and sockets. It was the “hot” wire, meaning it had the potential to deliver a shock if touched. - Neutral – Black
The black wire completed the circuit by carrying current back to the power source. Though not normally live under normal conditions, it could still be dangerous. - Earth – Green (later Green/Yellow stripes)
The earth wire acted as a safety path for fault current, preventing exposed metal parts of appliances from becoming live. Prior to 1977, solid green was used, but this was later changed to green-and-yellow stripes to avoid confusion with other green-coloured wires.
These colours were widely used in houses built before 2004, meaning they are still commonly found today in older properties.
Post-2004 Wiring Colours (New Harmonised System)
In 2004, the UK adopted a new wiring colour code aligned with European standards (IEC 60446). This change was introduced to simplify manufacturing, trade, and safety across EU member states. The new system uses the following colours:
- Live (Phase) – Brown
The brown conductor replaced the red live wire. As before, this carries the current from the power source to the appliance. - Neutral – Blue
The neutral wire changed from black to blue. It continues to provide the return path for current. - Earth – Green/Yellow stripes
The earth wire remained green-and-yellow striped, unchanged from the late 1970s standard.
For three-phase installations, which are often used in commercial or industrial settings, the following colours are used:
- L1 = Brown
- L2 = Black
- L3 = Grey
- Neutral = Blue
- Earth = Green/Yellow
This is different from the old system, where the three phases were Red, Yellow, and Blue.
Why the Change?
The switch to harmonised colours aimed to:
- Increase safety for professionals moving between countries – electricians trained in one EU nation could work in another without misinterpreting wiring.
- Standardise manufacturing – appliance and cable manufacturers could produce products for the whole European market without needing separate designs for each country.
- Improve clarity – especially with the adoption of new colours for three-phase circuits, where the risk of misconnection was higher.
Practical Implications
When working on UK wiring, it is crucial to identify whether you are dealing with the old or new colour scheme, because both may still exist within the same property. During partial rewires, for example, a house might contain a mix of red/black and brown/blue cables. To manage this safely:
- Junction boxes and consumer units should carry warning labels if both systems are present.
- Electricians should test every conductor with proper equipment, never relying solely on colour.
- DIY work should be approached with extreme caution, as misinterpreting the colour code can lead to dangerous mistakes.

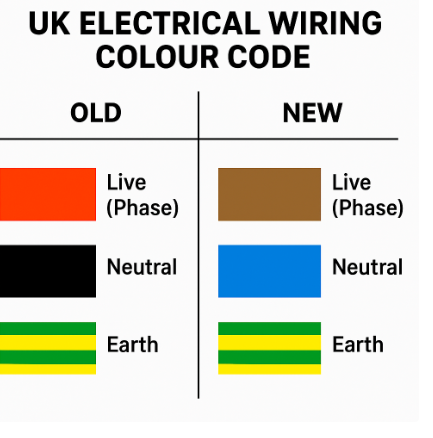

Summary
The UK electrical wiring colour code is a safety system designed to make circuits easily identifiable.
- Old system (pre-2004): Red = Live, Black = Neutral, Green/Yellow = Earth.
- New system (post-2004): Brown = Live, Blue = Neutral, Green/Yellow = Earth.
- For three-phase systems: Brown, Black, and Grey represent the phases, with Blue as Neutral.
Both systems are still in use today due to older housing stock. Awareness of the changes, and the possibility of mixed wiring, is essential for anyone working with UK electrics. Ultimately, the colour code protects lives by reducing confusion, preventing errors, and ensuring safer electrical installations.
